- Type:portable Nd yag laser Q switch tattoo removal machine
- Function:Tattoo/ pore/ birthmark/ eyebrow/ eye line/ lip line removal
- Power:800W
- Voltage:AC220V+10%, 50Hz, 110+10%, 50hz
- lamp longevity:800000shots
- Energy:50-2000mj
- Frequency:1-6Hz
- Pulse width:1-100s
- laser wave length:1064nm/532nm/1320nm( black moppet head)
- Q-Switch:YES
- Laser Type:Nd: Yag Laser
- Style:PORTABLE
- Type:LASER
- Certification:ce
- Certification:CE
- Feature:Acne Treatment
- Feature:Pigment Removal
- Feature:Pigmentation Correctors
- Feature:Pore Remover
- Feature:Tattoo Removal
- Application:For Commercial
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Online support
- After-sales Service Provided:Video technical support
- Warranty:1 YEAR
- Place of Origin:CN;GUA
- Model Number:S-011
- Brand Name:huikang

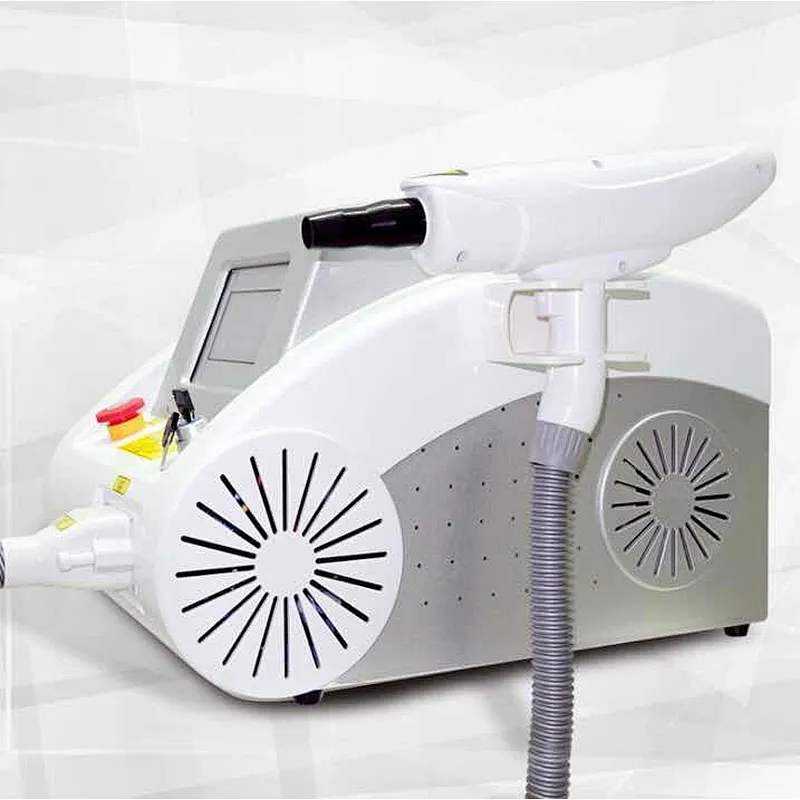

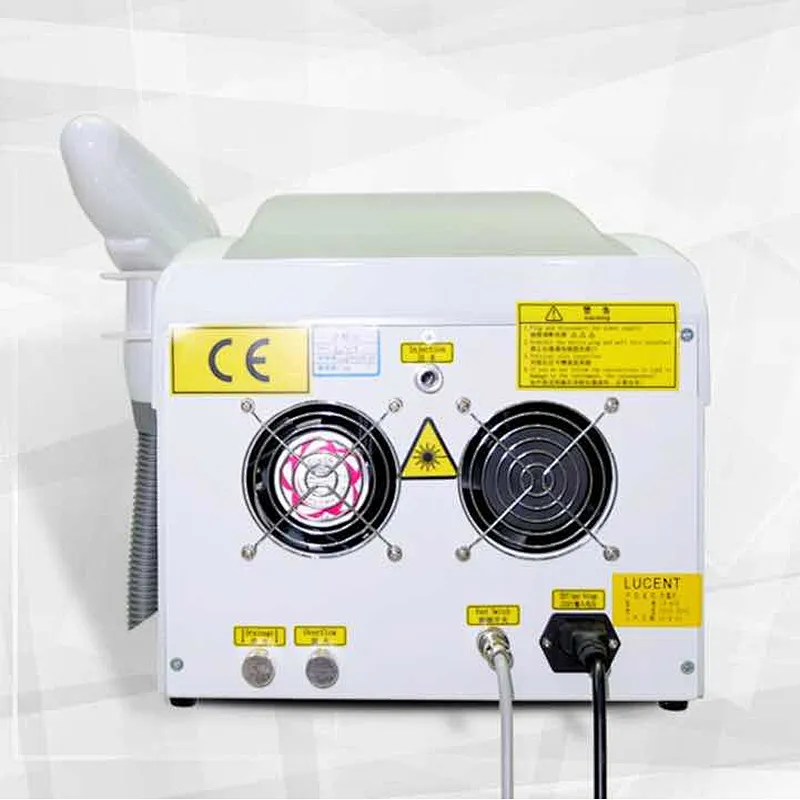

portable Nd yag laser Q-switch tattoo removal machine
Q swithced nd yag laser working Principle:
The energy of Q-switched ND:YAG laser can be absorbed by the blue and black melanin.The
melanin will be fragmented so small that they can be metabolized by the lymphatic system or
egested out of the body. Thus the tattoo or other pigmentations will be removed without damage
to normal tissue.The treatment is safe and convenient without downtime and side effects.
Working Principle:
Laser emitted by the system has a strong penetration ability which allows it to reach the deep layer of dermis. The pigment particles absorb the light energy and explode sharply, burst into the tiny pieces, thus diminish the color density and get rid of it.
So the appliance can effectively do away with mutant pigmentations and vascular tissue based on undamaged ambient tissue. This is called ‘Selective heat absorption’ principle in medical field.
How does it work?
Nd yag Laser tattoo equipment adopts the Q switched mode, which makes use of the instantaneous emitted laser to break the pigment in ill structure. That’s the laser instantaneous emit theory: centralized high energy emit suddenly, which makes laser of settled wave band instantaneously penetrate through cuticle to the ill structure in 6ns, and break the relevent pigments quickly.
After aborb the heat, the pigments swell and break down, some pigments ( in skin-deep cuticle ) fly off the body immediately, and other pigments ( deep structure ) break down then become the tiny granule can be licked up by the cell, digested and egest from the lymph sell. Then the pigments in ill structure lighten to disappear. Moreover, the laser do not damage the around normal skin.

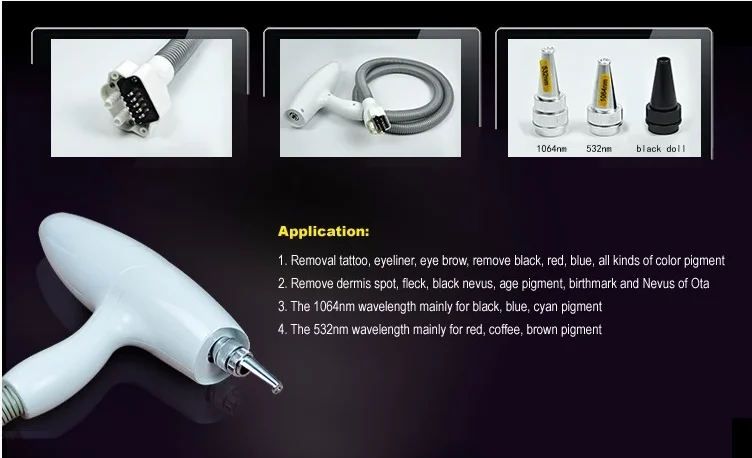

Application Range:
1.532nm wavelength: get rid of freckles, eyebrow tattoo, failed eye line tattoo, tattoo , lips line, pigment, telangiectasia in shallow red, brown and pink and etc. light color
2.1064nm wavelength: get rid of freckles and yellow brown spot, eyebrow tattoo, failed eye line tattoo, tattoo, Birthmark and Nevus of Ota, pigmentation and age spot, nevus in black and blue, scarlet red, deep coffee and etc. deep color.
3.1320nm wavelength: shrink pores removal, poblackhead removal, skin tightening and whitening, skin rejuvenation, wrinkle removal.
Parameters

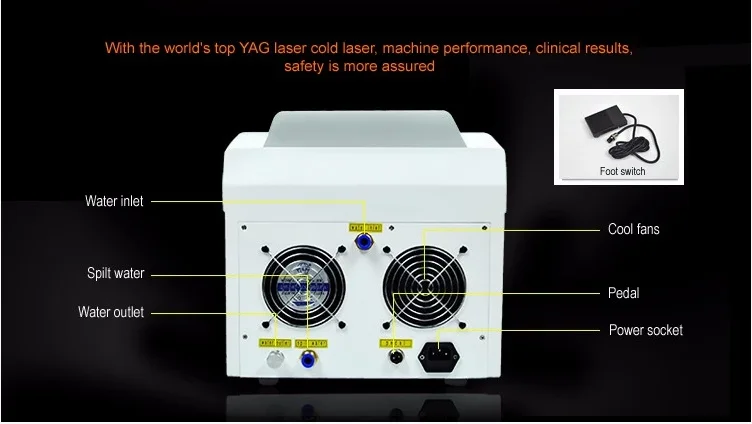

Cooling condition: wind system+closed circulating+cooling system
Laser type: Q-Switch Nd Yag
Screen Display: 5 inches touch screen
Laser wavelength: 1320nm/1064nm/532nm
Laser output power: 800W
The pulse energy: 0-1700mJ
Pulse width: 1-10ns
Pulse frequency: 1-10Hz
Power source: 110v~220v
Packing size:45×60×51cm
N.W:10kg G.W:25KG
Voltage input: 110V/220V,50Hz/60Hz
Q swithced nd yag laser Advantage:
1. Q Switched ND: YAG laser with more powerful pulse energy, ensuring moreefficient pigments removal.
2. Airout pole can help water circle very well, can protect handle form destroy.

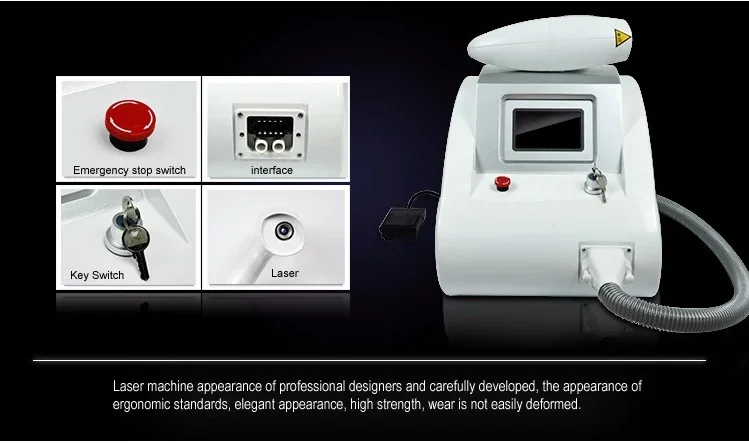

3. Emergency button If come any thing Emergency,you can press the red emergency button,then themachine can not work any more.
4. High energy,no side effects,non-invasive,safe,easy to operation, portable
5. Multi-language system, touch screen display.
6. Will not destroy hair follicle, will not injure ordinary skin
